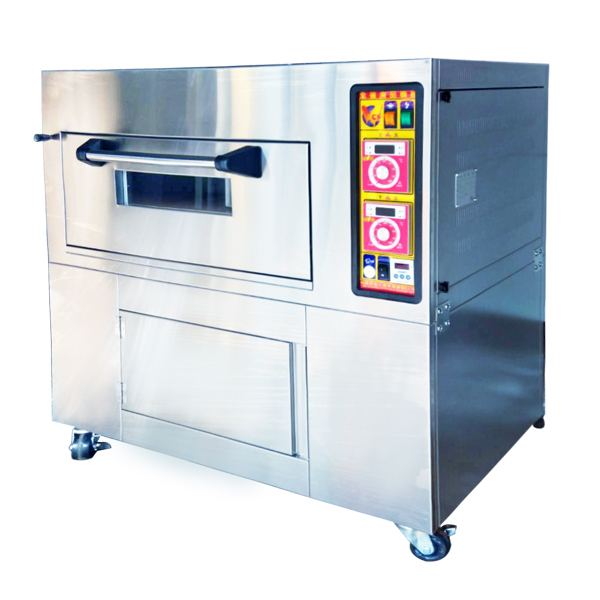

Name: Deck Oven
Brand: CHUAN CHIU FOOD MACHINERY CO.,LTD
SKU: NO1476

Deck Oven

Production information

Deck Oven
MODEL	Standard	Tray size	Under	Outside Dimensions	Voltage	Power
1 Deck Oven	1Deck 1Tray	46×72/40×60cm	METAL BOX	71×112×108cm	ψ 220V / 3ψ 380V	4kw
	1Deck 1Tray	46×72/40×60cm	Proofer	71×112×111cm	ψ 220V / 3ψ 380V	5.7kw
	1Deck 2Trays	46×72/40×60cm	METAL BOX	98×143×110cm	ψ 220V / 3ψ 380V	6kw
	1Deck 2Trays	46×72/40×60cm	Proofer	98×143×113cm	ψ 220V / 3ψ 380V	7.7kw
2 Decks Oven	2Decks 2Trays	46×72/40×60cm	METAL BOX	71×112×156cm	ψ 220V / 3ψ 380V	8kw
	2Decks 2Trays	46×72/40×60cm	Proofer	71×112×159cm	ψ 220V / 3ψ 380V	9.7kw
	2Decks 4Trays	46×72/40×60cm	METAL BOX	98×143×162cm	ψ 220V / 3ψ 380V	12kw
	2Decks 4Trays	46×72/40×60cm	Proofer	98×143×165cm	ψ 220V / 3ψ 380V	13.7kw
3 Decks Oven	3Decks 3Trays	46×72/40×60cm	-	71×112×159cm	ψ 220V / 3ψ 380V	12kw
	3Decks 6Trays	46×72/40×60cm	-	98×143×168cm	ψ 220V / 3ψ 380V	19kw
	3Decks 9Trays	46×72/40×60cm	-	98×190×168cm	ψ 220V / 3ψ 380V	27kw

(You can use a scroll bar to scroll left and right, to get complete information. )

Characteristic:

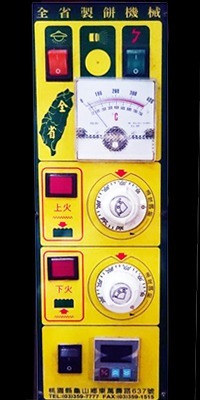

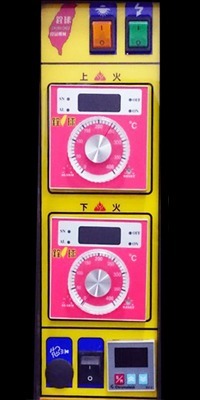

It with electronic thermo-controller,high precision ,to enable temperature of oven chamber can keep the correct temperature,The LED panel is easy to control ,we have another two panel can choice CPU and EGO ,All can independently control the temperature of the fire and satisfy baking performance at all.

Feature:

With electronic thermo-controller, high precision to enable temperature and to meet baking performance.
The oven door with rubber seal in order to avoid air leaking.

Oven is made form thicker steel sheet,the structure is very strong and with long life. It will not be transformed by high heating temperature.
With thick heat insulation layer in order to avoid energy waste.

The baking performance is very even on the surface.
It is used for baking products with simple operation and excellent heat preservation.
Suitable for bakries 、Castella Cake Shop、coffee shops、home use 、baking classrooms、breakfast shops, etc..
